LED Sport Stadium Light
Description

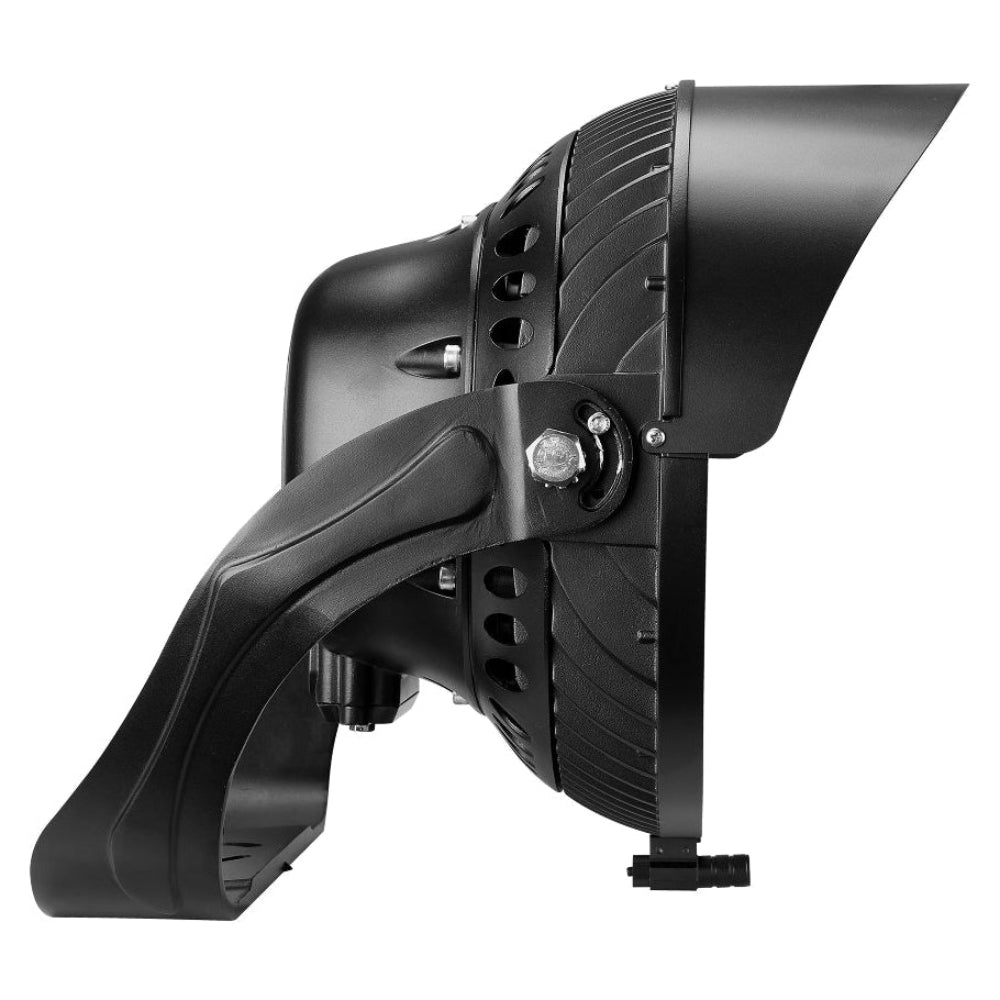

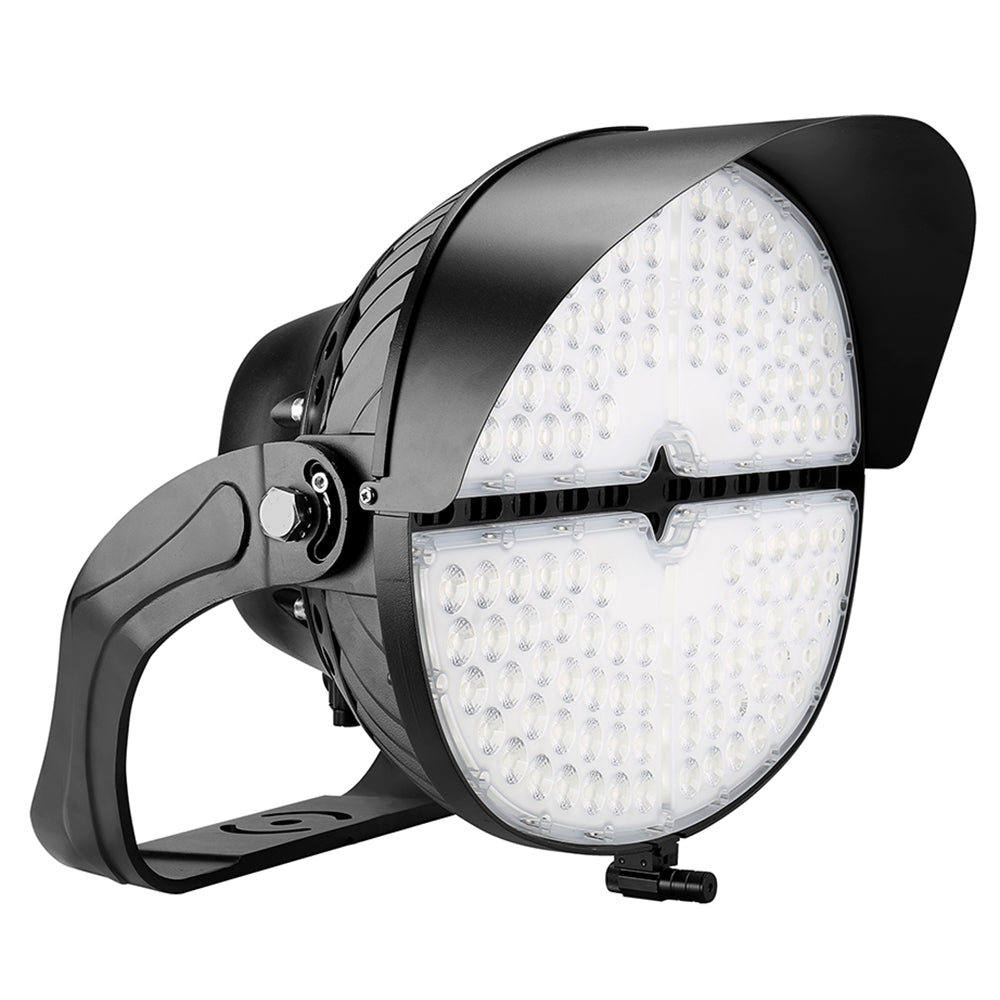

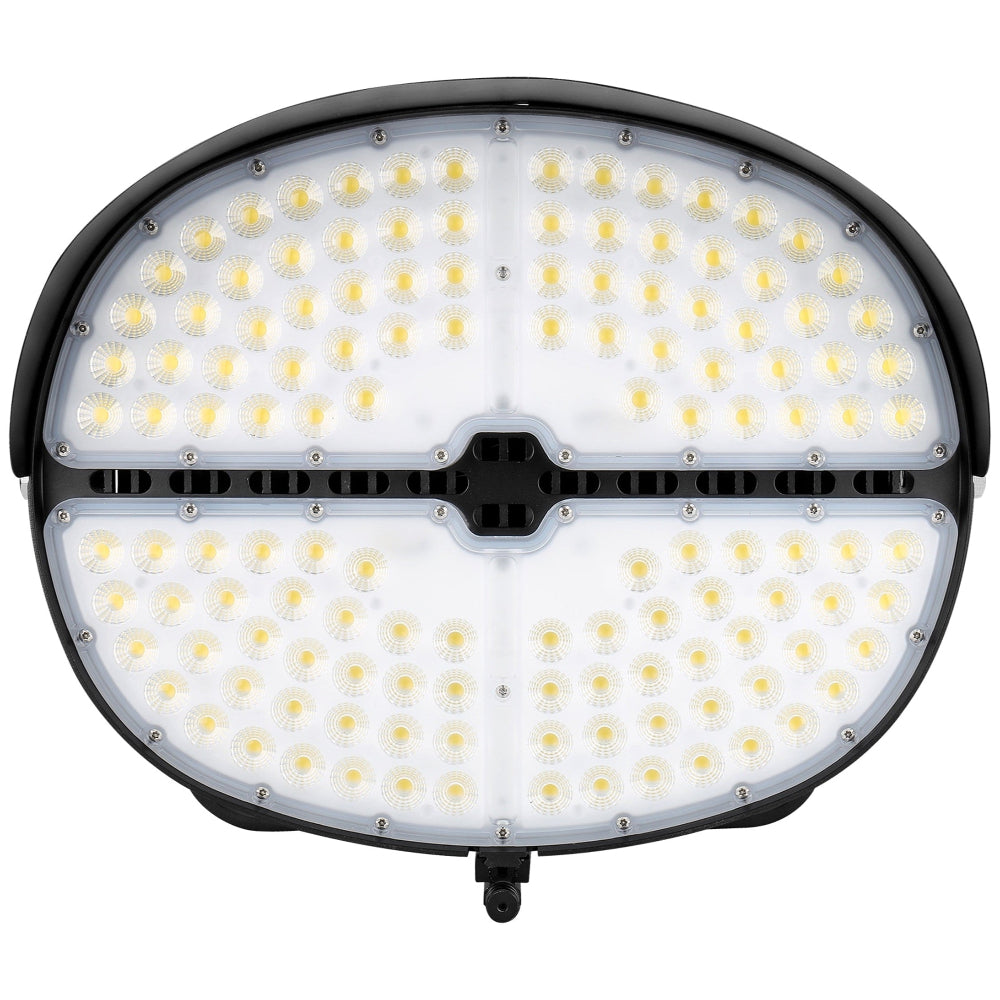

505W LED Stadium Light
The Haloitte Lighting 505W LED Stadium Sport Light delivers high-output illumination engineered for large-scale outdoor environments such as stadiums, airports, and shipyards. Featuring a 4Hx4V beam angle and an integrated reflector, it minimizes glare and uplight, ensuring focused, efficient lighting.
Constructed from die-cast aluminum with impact-resistant polycarbonate lenses, this fixture offers superior durability and corrosion resistance. Built-in heat sinks promote optimal thermal management, extending the lifespan of the light. A laser pointer (optional) allows for precision aiming during installation.
Ideal for stadiums, municipal fields, golf courses, and parking lots, this IP66-rated fixture provides up to 72,215 lumens, supporting mounting heights up to 120 feet. Its lightweight trunnion mount design ensures quick, secure installation even in rugged outdoor conditions.
Applications
| Baseball Fields | Football Field Lighting | Tennis Courts |
| Soccer Fields | Basketball | Stadium Lighting |
| Community Parks | Sports Complex | Arenas |
Specifications
| Input Voltage | 120-277Vac | Dimmable | 0-10V |
| Lumens | 72215 | Efficacy | Up to 143 LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -104 F to 113 F | IP Rating | IP65 |
| Power Factor | >0.9 | THD | <17% |
| Input Wattage | 505W | ||
| Color Temperature | 5000K | ||
| Certifications | UL, DLC | ||
| Beam Angle | 4H x 4V | ||
