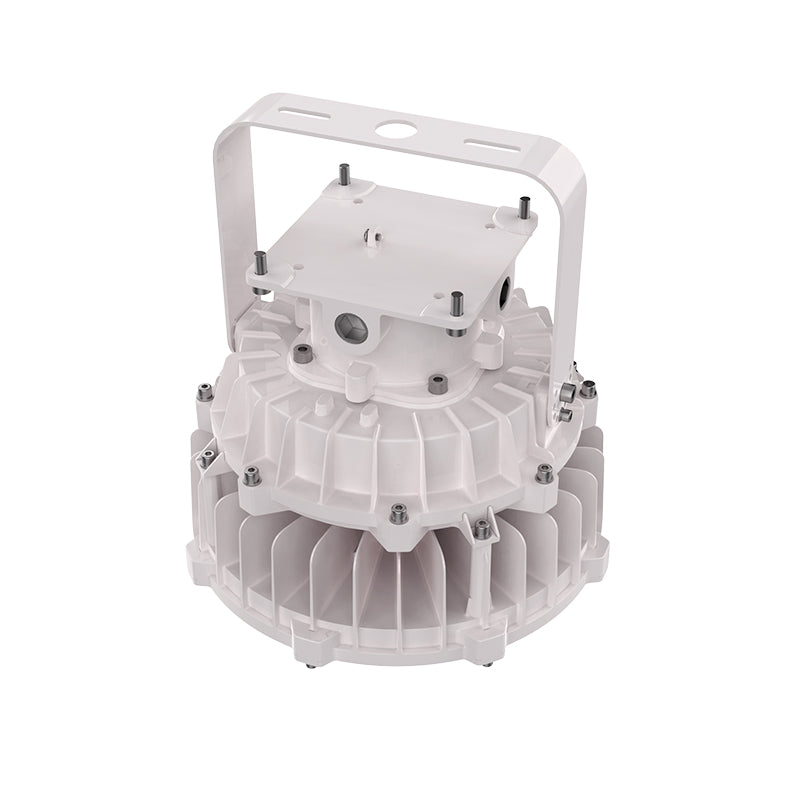

LED Explosion Proof Light
Description
200W High Voltage Hazardous Location Light
Illuminate high-risk environments with confidence using the 200W LED Explosion Proof Light, specifically designed for Class I Division 2 hazardous locations where flammable gases, vapors, or combustible dust may be present.
Engineered for 347–480Vac high-voltage applications, this heavy-duty fixture features a sealed die-cast aluminum housing and a tempered glass lens to contain internal sparks and ensure safe operation. Powered by a constant current driver, it delivers 31,000 lumens of 5000K daylight—a high-performance replacement for traditional 500W metal halide fixtures, significantly reducing energy and maintenance costs.
Equipped with a robust trunnion mount for flexible and secure installation, this explosion-proof light is ideal for oil and gas facilities, chemical plants, refineries, paint booths, and other hazardous industrial environments.
Haloitte Lighting provides dependable, code-compliant lighting solutions built to withstand the harshest operating conditions.
Applications
| Oil and Gas Rigs | Petrochemical Plants | Paint Spray Booths |
| Gas Stations | Hazardous Location | Farm Building |
| Granaries | Mining Lights | Shopping Centers |
| Wastewater and Sewage Plants | Industrial Facilities | Steel Mills |
Specifications
| Input Voltage | 347-480Vac | Dimmable | 0-10V |
| Lumens | 31000 Max | Efficacy | Up to 150LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 113 F | IP Rating | IP65 & IK08 |
| Power Factor | >0.9 | THD | <20% |
| Input Wattage | 200W | ||
| Color Temperature | 5000K | ||
| Certifications | UL Wet Locations | ||
