LED Explosion Proof Light
Description

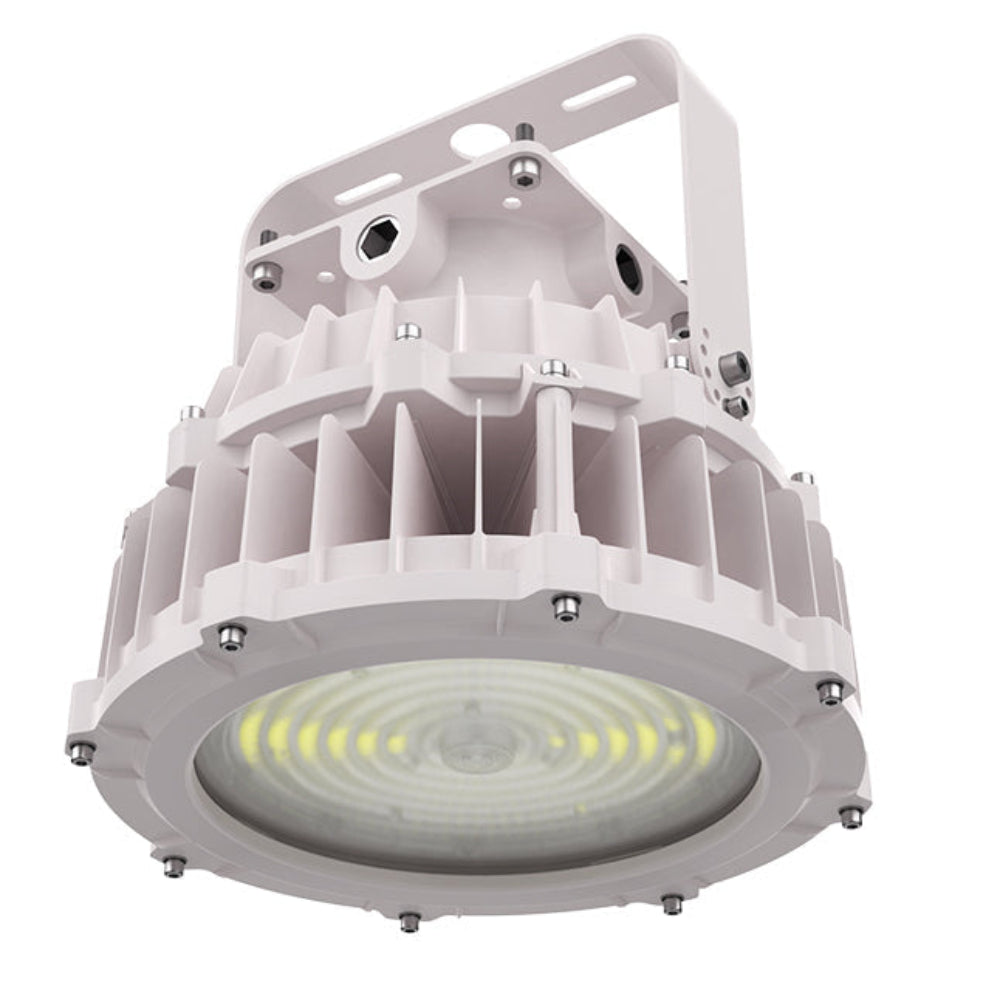

100W High Voltage Hazardous Location Light
Ensure reliable, high-output illumination in hazardous environments with the 100W LED Explosion Proof Light, specially engineered for Class I Division 2 locations where flammable gases, vapors, or combustible dust may be present.
Operating at 347–480Vac, this industrial-grade fixture features a sealed die-cast aluminum housing and a tempered glass lens, designed to contain internal sparks and prevent ignition in volatile areas. Its constant current driver delivers 15,500 lumens of 5000K daylight, providing brilliant visibility while replacing a 300W metal halide fixture—offering significant energy and maintenance savings.

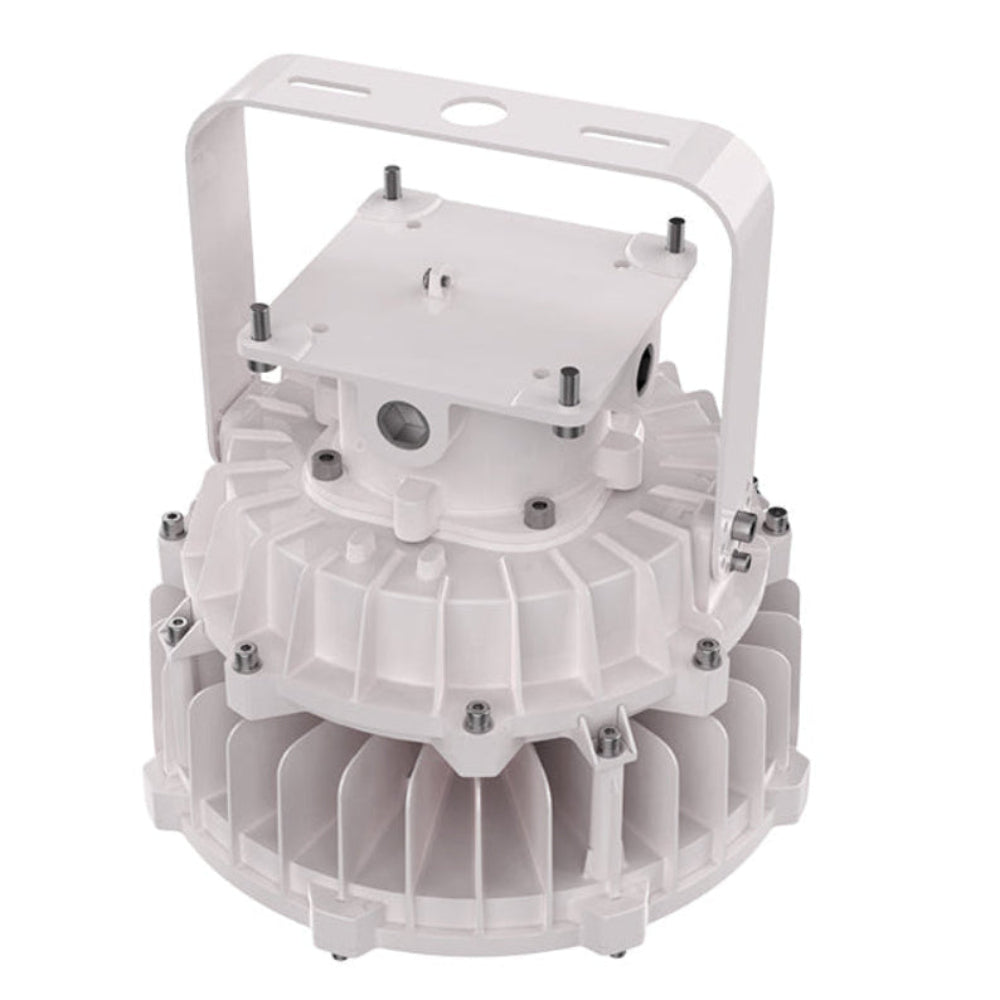

The fixture includes a durable trunnion mount for secure, adjustable installation. Ideal for use in oil and gas facilities, chemical processing plants, refineries, paint booths, and other classified hazardous zones.
Trust Haloitte Lighting for rugged, high-voltage, explosion-proof lighting solutions built to perform in the most demanding industrial environments.
Applications
| Oil and Gas Rigs | Petrochemical Plants | Paint Spray Booths |
| Gas Stations | Hazardous Location | Farm Building |
| Granaries | Mining Lights | Shopping Centers |
| Wastewater and Sewage Plants | Industrial Facilities | Steel Mills |
Specifications
| Input Voltage | 347-480Vac | Dimmable | 0-10V |
| Lumens | 15500 Max | Efficacy | Up to 150LM/W |
| CRI | >80 | Rated Life | >50,000 hrs |
| Operating Temp | -40 F to 113 F | IP Rating | IP65 & IK08 |
| Power Factor | >0.9 | THD | <20% |
| Input Wattage | 100W | ||
| Color Temperature | 5000K | ||
| Certifications | UL Wet Locations | ||
